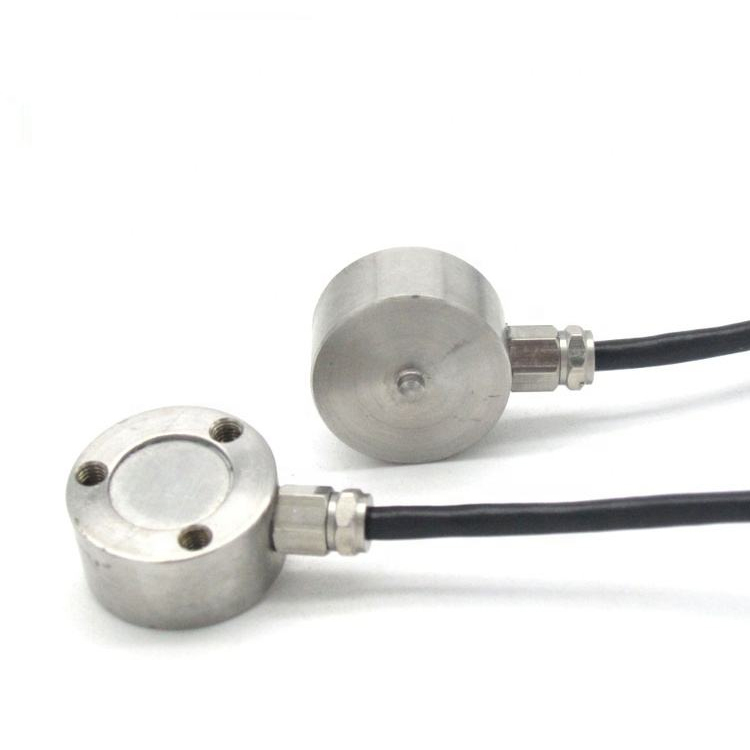

Stainless Steel Compression Load Cell 5-500kg Analog Output

Dettagli del prodotto:

Luogo di origine:	Cina
Marca:	RJ
Certificazione:	CE/ROSE
Numero di modello:	RJ

Informazione dettagliata

Luogo di origine:

Cina

Marca:

Certificazione:

CE/ROSE

Numero di modello:

Output:

Sensore analogico

Capacità:

5-500 kg

Sensibilità:

1.5±0,2 % mv/v

Tensione di eccitazione:

5 ~ 12 VDC

Sovraccarico sicuro:

150% R.C.

Materiale:

Acciaio inossidabile

Evidenziare:

High Light

Evidenziare:

Stainless Steel Load Cell 500kg

Analog Output Load Cell Sensor

Compression Load Cell 5kg

Informazioni di trading

Quantità di ordine minimo:

Prezzo:

$40-50

Imballaggi particolari:

cartone o cassa di legno

Tempi di consegna:

5-8 giorni lavorativi

Termini di pagamento:

L/C, D/A, D/P, T/T, Western Union

Capacità di alimentazione:

2000PC/Month

Descrizione di prodotto

Compression type sub miniature button load cell 300kg 500kg

Stainless Steel Compression Load Cell 5-500kg Analog Output 0

Capacity	5kg-500kg
Sensitivity	0.5~1.5 mv/V
Precision	0.5 %F·S
Creep	±0.2 %F·S/30min
Non-linearity	±0.5 %F·S
Hysteresis error	±0.5 %F·S
Repeatability	±0.5 %F·S
Zero temperature coefficient	±0.2 %F·S/10℃
Temperature Effect On Output	±0.2 %F·S/10℃
Input resistance	500 ± 20 Ω
Output resistance	500 ± 20 Ω
Insulation resistance	≥ 2000 MΩ
Excitation voltage	5 ~ 15 VDC
Working temp. range	-20 ~ 70℃
Safety overload	150 %F·S
Sealing grade	IP67
Material	Stainless steel
Wiring	Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-

Stainless Steel Compression Load Cell 5-500kg Analog Output 1

Packing & Transport

Stainless Steel Compression Load Cell 5-500kg Analog Output 2
