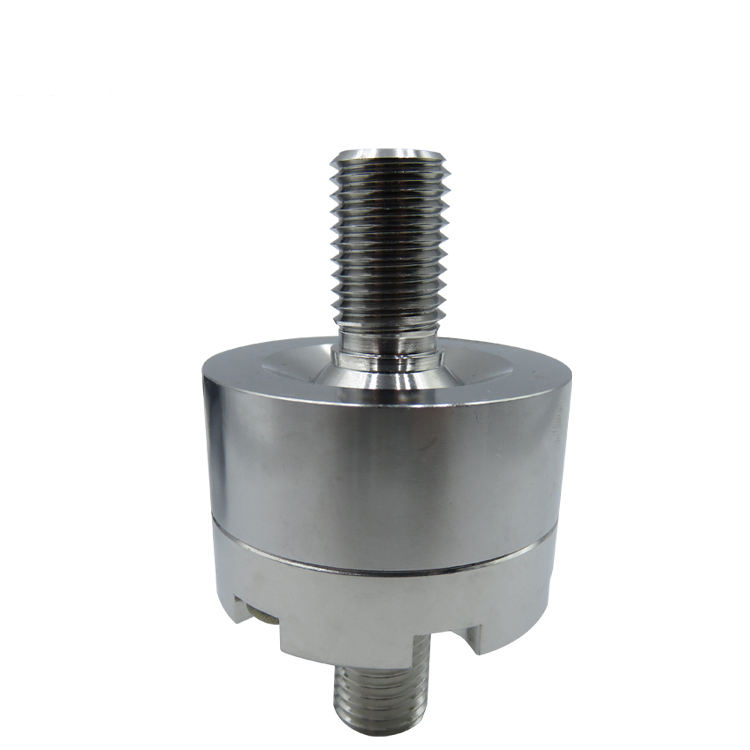

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor

Dettagli del prodotto:

Luogo di origine:	Cina
Marca:	RJ
Certificazione:	CE/ROSE
Numero di modello:	RJ

Informazione dettagliata

Luogo di origine:

Cina

Marca:

Certificazione:

CE/ROSE

Numero di modello:

Utilizzo:

Pesatura del sensore

Tipo di montaggio:

Fissazione della vite

Descrizione:

sensore di forza cella di carico sensore di peso

Tipo:

Sensore di forza

Capacità:

1KN~50KN

Materiale:

Acciaio legato Acciaio inox

Evidenziare:

High Light

Evidenziare:

Stainless Steel Thread Load Cell

1KN-50KN Force Sensor

High Capacity Load Cell Sensor

Informazioni di trading

Quantità di ordine minimo:

Prezzo:

$35~38

Imballaggi particolari:

cartone o cassa di legno

Tempi di consegna:

5-8 giorni lavorativi

Termini di pagamento:

L/C, D/A, D/P, T/T, Western Union

Capacità di alimentazione:

2000PC/Month

Descrizione di prodotto

Stainless Steel Thread Tension Load Cell Alloy Steel Round Load Cell Compression Load Cell

Specifications
Rated Output	mv/v	1.5±0.1
Non-linearity	%F.S	0.2%F.S
Hysteresis	%F.S	0.1
Repeatability	%F.S	0.1
Creep	%F.S/3min	0.2
Temp.effect on zero	%F.S/10℃	0.05%F.S
Temp.effect on span	%F.S/10℃	0.05%F.S
Zero balance	mv/v	±0.05
Input impedance	Ω	780±20
Output impedance	Ω	700±10
Insulation resistance	MΩ	≥5000(100VDC)
Recommended excitation voltage	VDC	5~15
Allowed excitation voltage	VDC	5~15
Compensated temp.Range	℃	-10℃~+60℃
Operating temp.Range	℃	-20℃~+80℃
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: Red:+ Black:-
Connection	Signal: Green:+ White:-

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor 0

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor 1

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor 2

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor 3

Packing & Transport

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor 4

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
